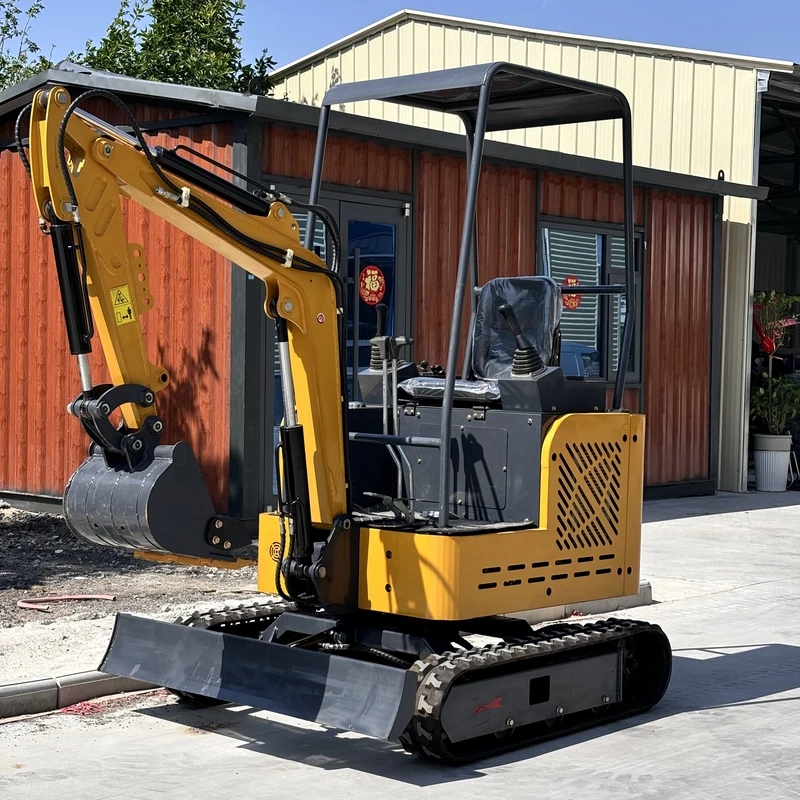

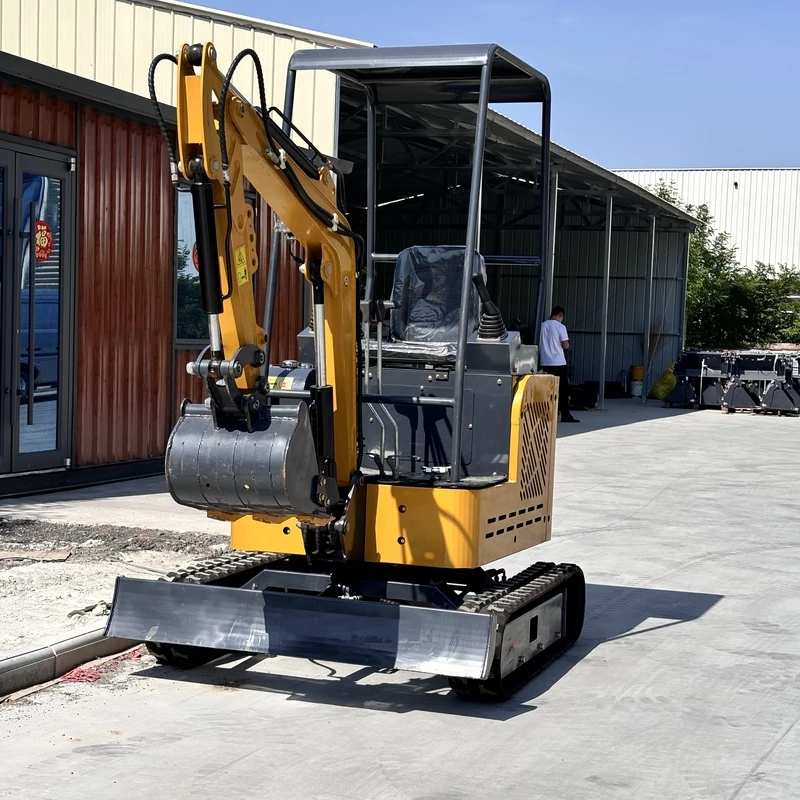

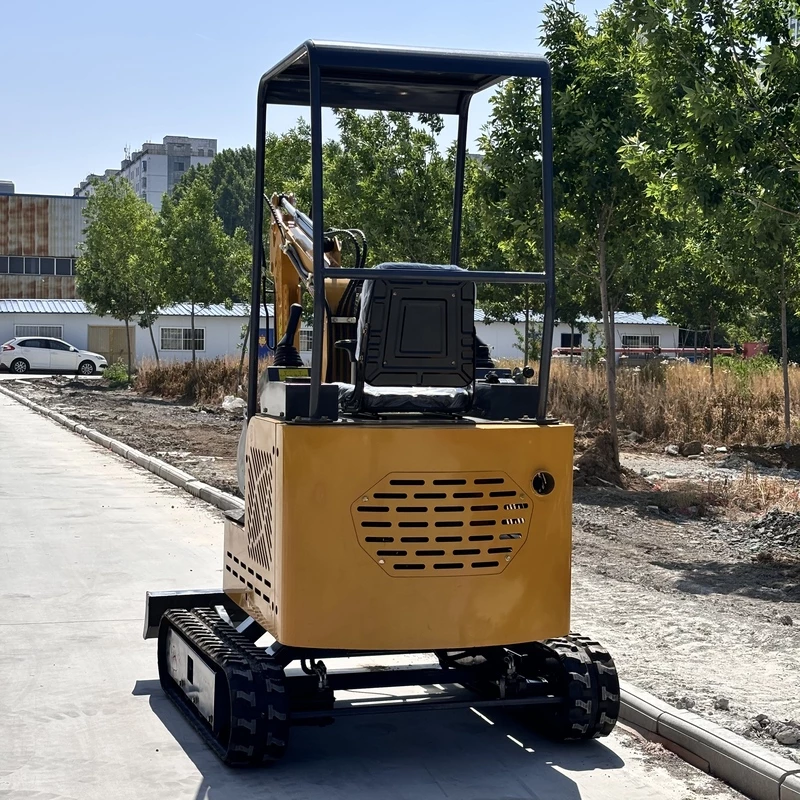

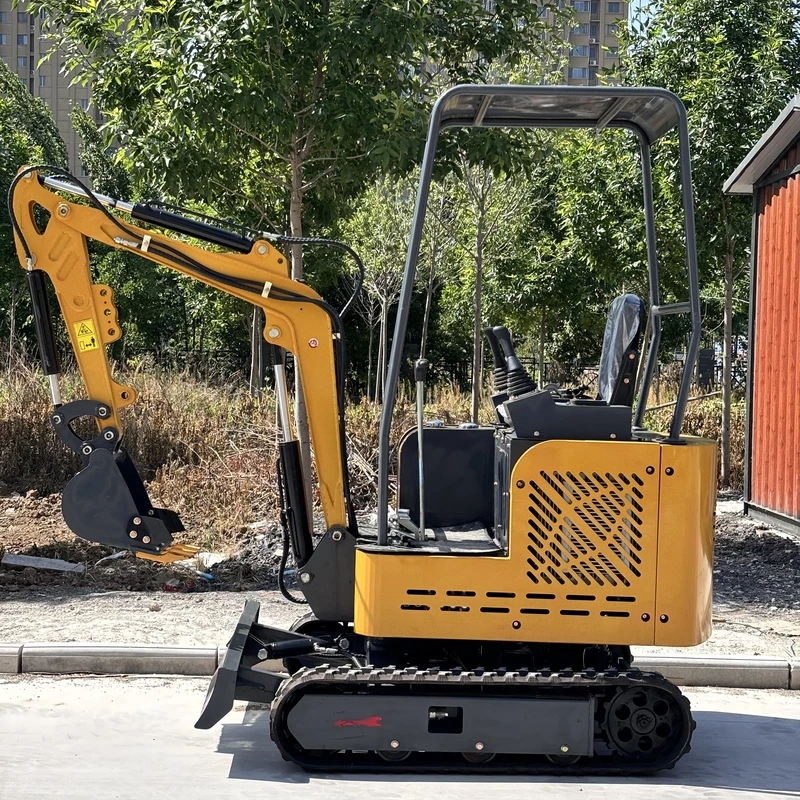

KERD Model 17 1.5 Ton Crawler Excavator | 19 kW Diesel Hydraulic Digging Machine for Landscaping & Trenching

Minimum order quantity: 1 piece

KERD Model 17 (KW17) 1.5-ton mini crawler excavator — 1500 kg operating weight, Laidong LL380B-16A diesel engine at 19 kW / 2200 RPM, 0.3 m³ bucket and Euro II emissions. Compact 1100 mm width with a 1495 mm minimum swing radius, ideal for landscaping, utilities, trenching and demolition worldwide.

Operating Weight: 1500 kg

Rated Power: 19 kW (2200 RPM)

Bucket Capacity: 0.3 m³

Detailed Description

Specification	Value	Specification	Value
Working Weight	1500 kg	Max Dumping Height	1670 mm
Transport Length	2420 mm	Max Digging Depth	2100 mm
Crate Length	2955 mm	Max Vertical Digging Depth	1600 mm
Overall Width	1100 mm	Max Digging Radius	3215 mm
Overall Height	2215 mm	Min Swing Radius	1495 mm
Upper Structure Width	940 mm	Standard Engine Brand	Laidong LL380B-16A
Chassis Overall Width	1110 mm	Emission Standard	Euro II (China Stage II)
Track Width	180 mm	Engine Power	19 kW / 2200 RPM
Wheel Track	1082 mm	Telescopic Side Swing	Optional add-on
Gauge	895.5 mm	Standard Bucket Width	400 mm
Platform Ground Clearance	400 mm	Bucket Capacity	0.3 m³
Min Ground Clearance	140 mm	Cab	Optional
Max Digging Height	3000 mm	Air Conditioner	Optional
