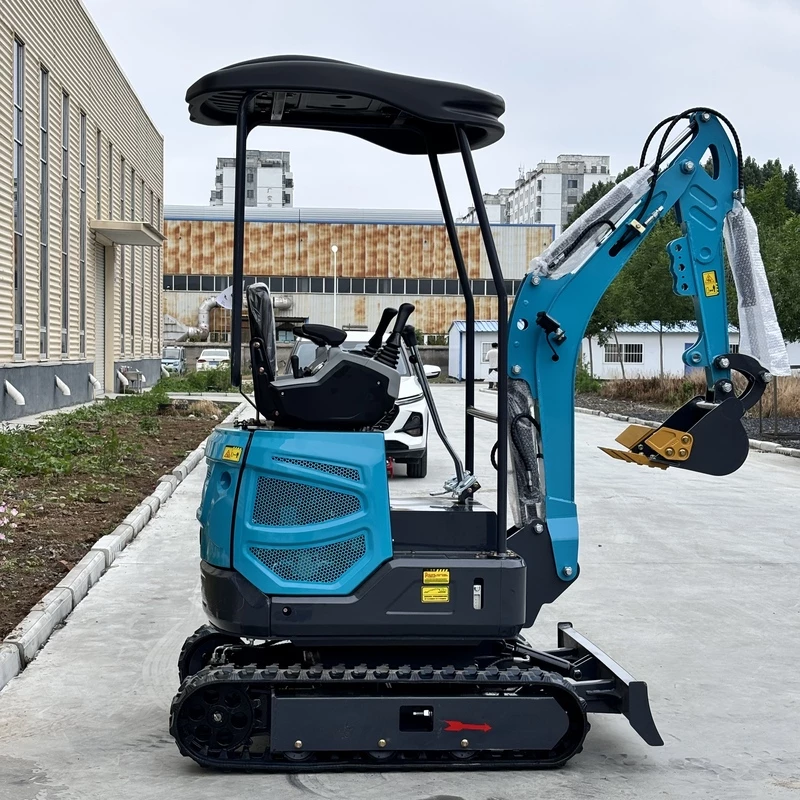

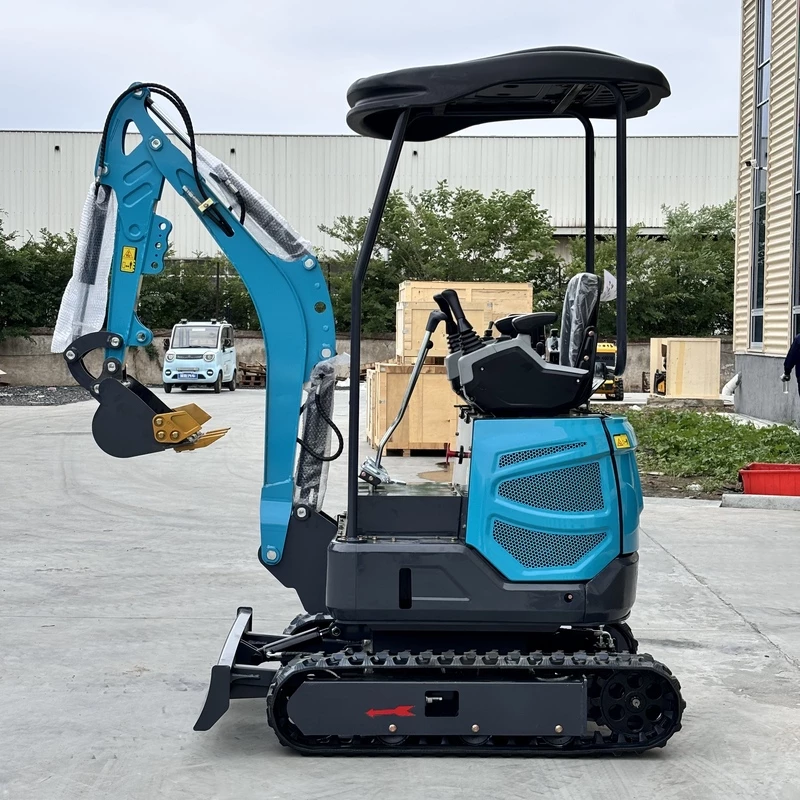

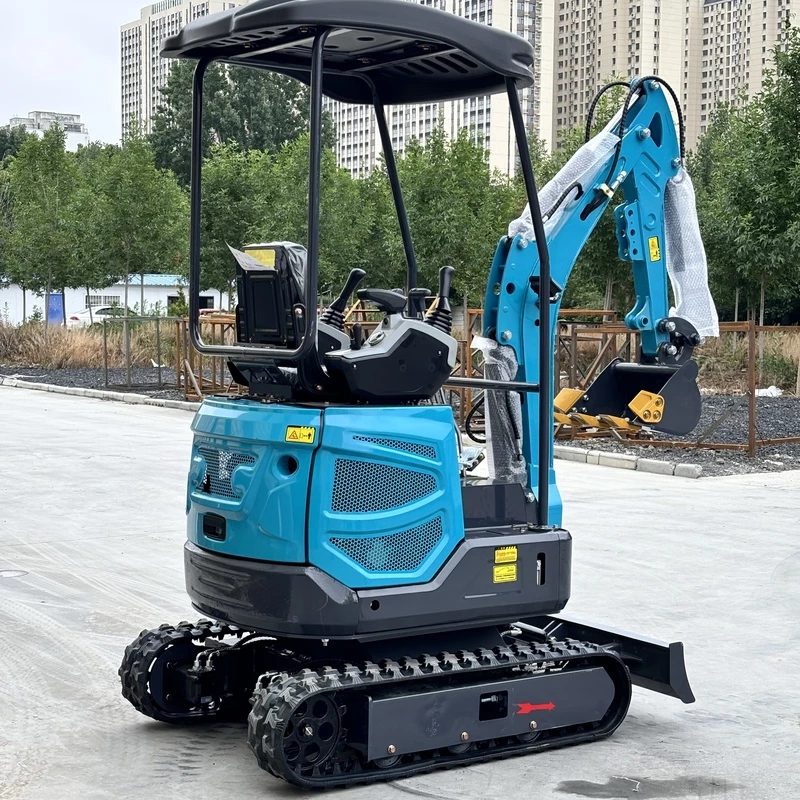

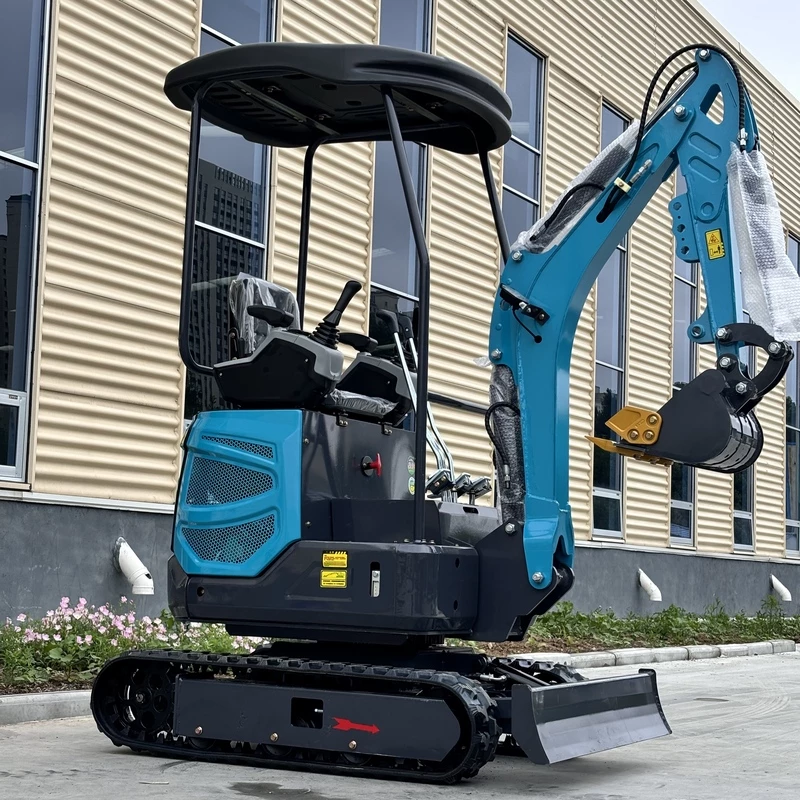

1.6 Ton Crawler Excavator with Dozer Blade | KERD 18 Mini Hydraulic Digging Machine, Laidong 380 Diesel Engine

Minimum order quantity: 1 piece

KERD Model 18 1.6-ton crawler excavator — 1600 kg operating weight, Laidong 380 diesel engine at 20 kW / 2300 RPM, 0.035 m³ bucket and front dozer blade. Compact 1100 mm width with a 1555 mm minimum swing radius, ideal for landscaping, utility trenching, orchard and light construction work worldwide.

Operating Weight: 1600 kg

Rated Power: 20 kW (2300 RPM)

Bucket Capacity: 0.035 m³

Detailed Description

Specification	Value	Specification	Value
Working Weight	1600 kg	Max Digging Depth	2200 mm
Transport Length	2600 mm	Max Vertical Digging Depth	1760 mm
Crate Length	3360 mm	Max Digging Radius	3330 mm
Overall Width	1100 mm	Min Swing Radius	1555 mm
Overall Height	2344 mm	Standard Engine Brand	Laidong 380
Upper Structure Width	1050 mm	Emission Standard	Euro II (China Stage II)
Chassis Overall Width	1100 mm	Engine Power	20 kW / 2300 RPM
Track Width	180 mm	Telescopic Side Swing	Not available
Wheel Track	1082 mm	Standard Bucket Width	400 mm
Gauge	1120 mm	Bucket Capacity	0.035 m³
Platform Ground Clearance	400 mm	Cab	Optional
Min Ground Clearance	145 mm	Air Conditioner	Optional
Max Digging Height	2880 mm	Optional Engine	Laidong 385
Max Dumping Height	2100 mm
