Skid Steer

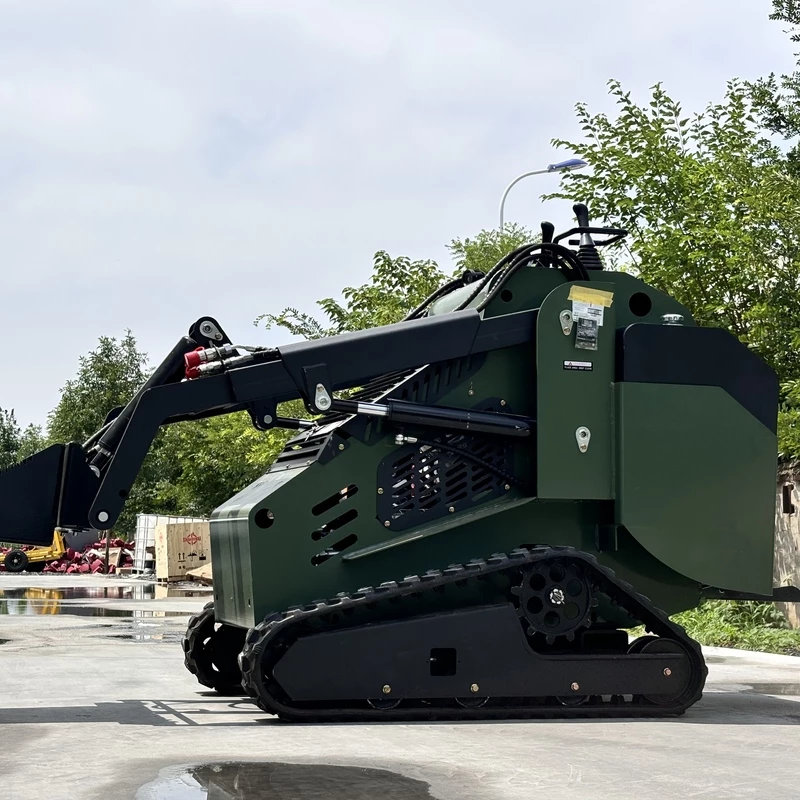

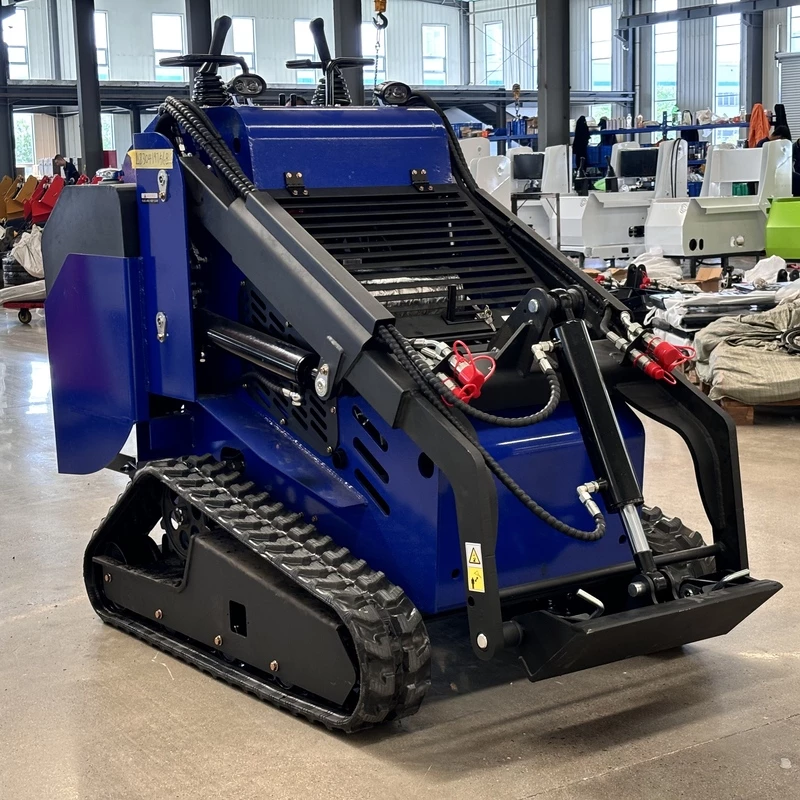

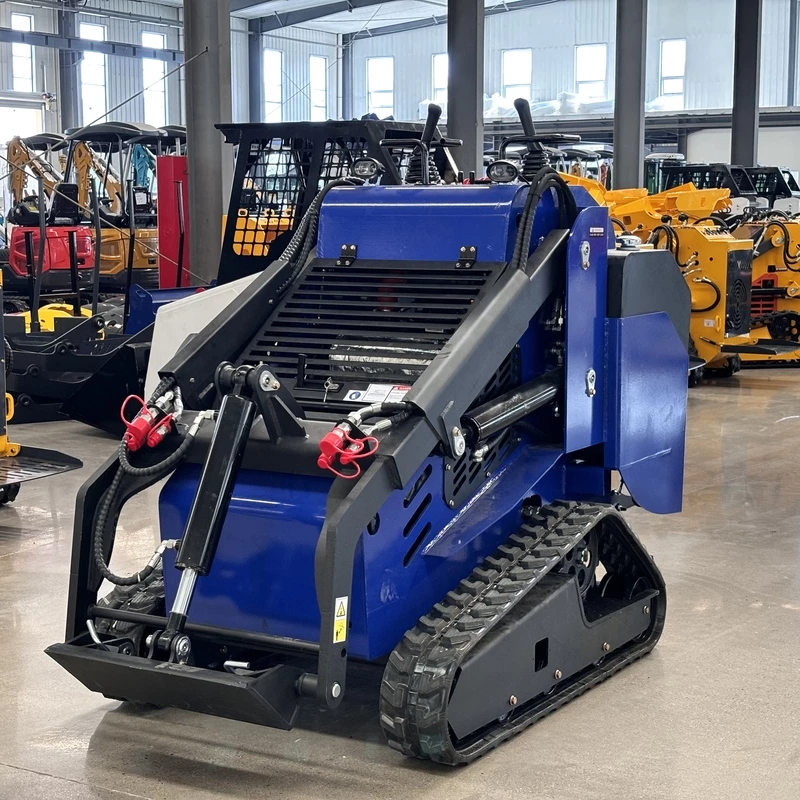

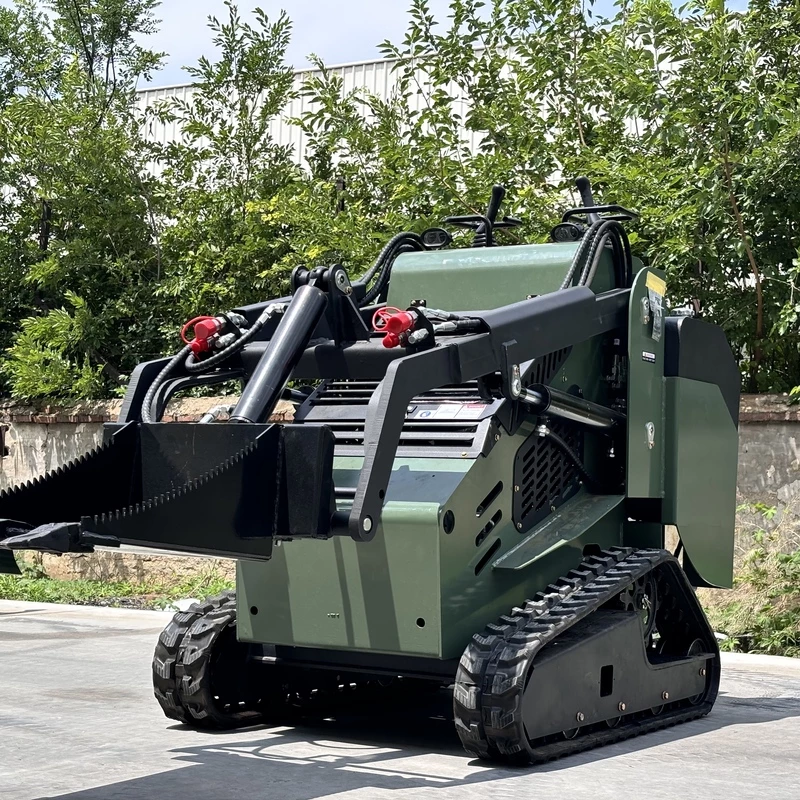

KERD V1000 Compact Track Skid Steer Loader | 1892 kg EPA Euro V Diesel, 650 kg Max Load, Pilot Joystick & Quick Coupler

Minimum order quantity: 1 piece

KERD V1000 compact track skid steer loader — 1892 kg operating weight, 650 kg maximum / 500 kg rated load and a 0.19 m³ bucket. Powered by a 24 HP / 17.1 kW EPA / Euro V diesel engine with pilot joystick control, a three-pump three-valve hydraulic system, stainless steel quick coupler and dual-zone cooling. Ideal for landscaping, construction, snow removal and material handling worldwide.

Operating Weight: 1892 kg

Rated Power: 17.1 kW (24 HP)

Bucket Capacity: 0.19 m³

Detailed Description

The KERD V1000 is built for productivity and operator comfort, featuring:

Three-pump three-valve hydraulic system — independent drive, lift and auxiliary lines let you move, lift and run attachments smoothly at the same time.
Pilot joystick control — short throw and low effort; new operators learn fast while professionals can meter precisely around walls, trucks and people.
Stainless steel quick coupler — change tools in seconds; the sealed, corrosion-resistant design reduces leakage and downtime.
Dual-zone cooling — the engine radiator and hydraulic oil cooler run on separate circuits, keeping oil and water temperature stable in hot weather and long shifts.

Specification	Value	Specification	Value
Overall Dimensions	2691×1240×1548 mm	Bucket Capacity	0.19 m³
Operating Weight	1892 kg	Emission Standards	EPA / Euro V
Rated Load	500 kg	Climbing Ability	25°
Maximum Load	650 kg	Horsepower	24 HP
Maximum Power	17.1 kW	Fuel Capacity	40 L
Walking Speed	0–6 km/h	Maximum Dumping Height	1522 mm
Rated Pressure	17–20 MPa	Maximum Working Height	2794 mm
Maximum Unloading Height	2102 mm	Bucket Dump Angle	63°
Minimum Height	1548 mm
